Precision 5 Axis CNC Machining Services in China
- One Setup, Complete Part
- Fewer Steps, Higher Yield
- Machines Impossible Geometries
- Save 30% on Costs
What is 5 axis machining?
5-axis machining is an advanced form of CNC (Computer Numerical Control) manufacturing where the cutting tool or workpiece moves along five different axes simultaneously. Unlike standard 3-axis machines that move linearly (X, Y, Z), 5-axis machines add two rotational axes (typically A and B), allowing the tool to approach the workpiece from virtually any angle in a single setup.
This capability is transformative because it enables the machining of highly complex, contoured parts—such as turbine blades, medical implants, and intricate molds—that would be impossible or inefficient to produce with fewer axes. The key benefits include dramatically reduced setup times, exceptional precision on complex geometries, and superior surface finishes.
5 Axis CNC Machining Advantages
Machines Complex Contours
Enables precision machining of deep cavities, undercuts, and intricate 3D surfaces impossible with 3-axis.
One Setup, Complete Part
Eliminates multiple fixture changes, saving time, reducing error, and slashing overall production cost.
Superior Surface Finish
Maintains optimal tool angle for continuous cutting, resulting in exceptional surface quality on complex shapes.
Unmatched Accuracy & Speed
Dramatically reduces cycle times while achieving tighter tolerances through continuous, simultaneous multi-axis motion.
Maximum Design Freedom
Turns sophisticated, organic designs into reality, unlocking innovation for aerospace, medical, and automotive parts.
5 Axis, 4 Axis, or 3 Axis? Find Your Best Fit.
| Feature | 5-Axis Machining | 4-Axis Machining | 3-Axis Machining |
| Motion | 3 linear + 2 rotary axes simultaneously | 3 linear + 1 rotary axis (indexing or simple contour) | 3 linear axes only |
| Core Characteristics | Machines complex 3D surfaces from any angle in one setup | Machines multiple sides or cylindrical features in one setup | Machines primarily one face at a time |
| Suitable Parts | Aerospace impellers, medical implants, complex molds | Camshafts, cylindrical engravings, multi-sided housings | Plates, brackets, pockets, planar features |
| Key Advantage | Highest accuracy for complex geometries; eliminates multiple setups | Reduces setups for parts with rotational features; good value | Lowest cost & complexity; ideal for prismatic parts |
| Relative Cost | Highest (machine, programming, operation) | Medium (balance of capability and cost) | Lowest (most economical for simple parts) |
Why Choose SINCERE as Your Partner?
High Concentricity
Ensures perfect roundness and alignment for shafts, pins, and bearings, critical for smooth rotation.
Excellent Surface Finish
Delivers smooth, often mirror-like surfaces directly from the machine, reducing need for secondary finishing.
Fast Production Cycles
Ideal for high-volume runs of rotational parts, with automated feeding enabling continuous, efficient output.
Wide Material Range
Machines various metals including stainless steel, aluminum, brass, titanium, and alloy steels.
Rigorous Quality Control
Each part undergoes dimensional and surface inspection to guarantee it meets specified tolerances and standards.

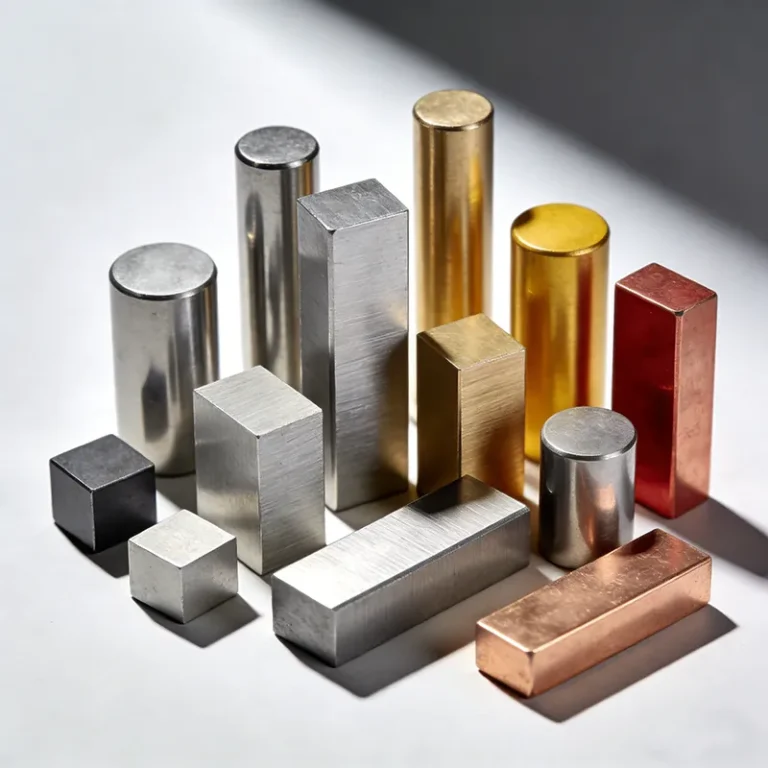

5 Axis CNC Machining Materials
5-axis CNC machining is utilized for high-strength, complex components. SINCERE specializes in machining a wide range of premium metal materials, including:
Titanium Alloys
Stainless Steel
Aluminum Alloys
Tool Steels
Inconel & Superalloys
Brass & Copper
These materials are chosen for demanding applications in aerospace, medical, and automotive industries where precision and performance are critical.

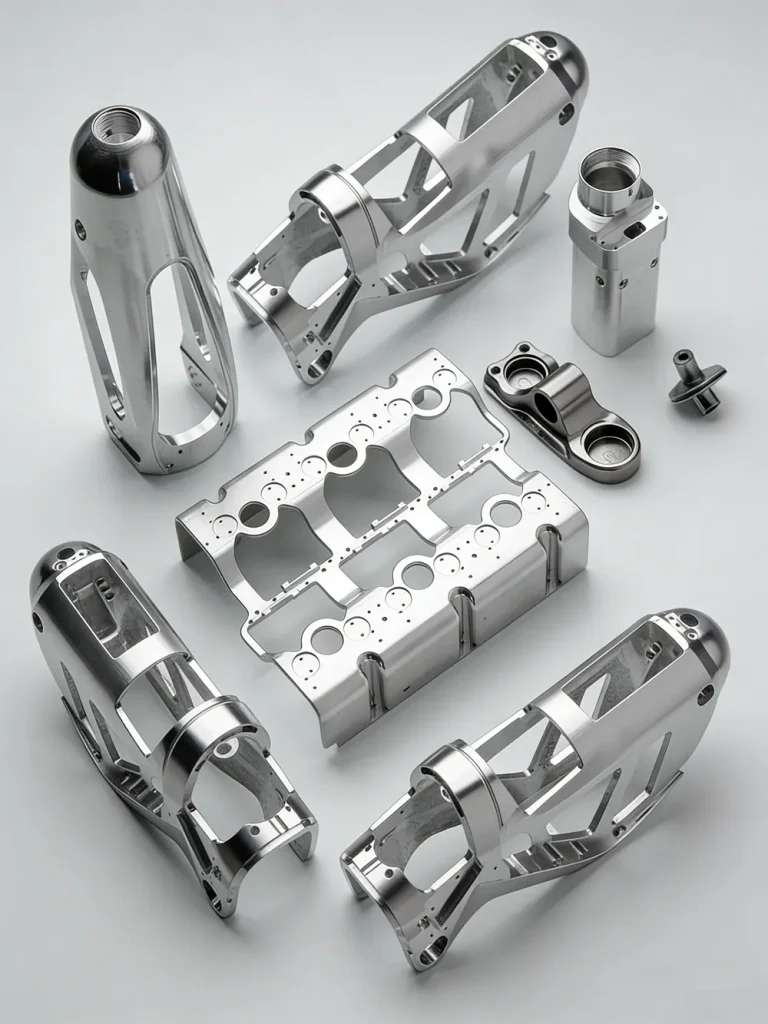

5 Axis Machined Parts for Various Applications
5-axis CNC machining is ideal for producing highly complex and precision components. SINCERE’s 5-axis capabilities serve demanding applications with parts such as:
- Aerospace components
- Medical implants
- Complex molds & prototypes
- Turbine blades
- High-precision robotics parts
and more;
Why Choose SINCERE as Your Partner?
Get a competitive quote for high-value CNC machining without compromising on precision.
Single-Setup Precision
Complete complex parts in one fixture, achieving ±0.005mm positional accuracy and eliminating alignment errors.
Unmatched Speed
Reduce production time by up to 60% vs. multi-setup methods, accelerating your project from design to delivery.
Complex Geometry Experts
Machine deep cavities, undercuts, and 3D contours impossible with 3-axis, turning sophisticated designs into reality.
Certified Reliability
All parts manufactured under ISO 9001:2015, with 100% critical feature inspection ensuring consistent, high-quality results.
FAQ About 5 Axis CNC Machining
What is 5-axis CNC machining, and how is it different?
5-axis machining allows the cutting tool to approach the workpiece from virtually any direction simultaneously. Unlike 3-axis, it can complete complex parts with deep cavities and undercuts in a single setup, saving time and improving accuracy.
When should I choose 5-axis over 3-axis or 4-axis machining?
Choose 5-axis for parts with complex, organic contours, compound angles, or features on multiple sides that would otherwise require costly and less accurate re-fixturing on simpler machines.
Is 5-axis machining more expensive?
While the machine rate is higher, 5-axis often lowers the total part cost by reducing setups, fixtures, and secondary operations. It’s the most cost-effective solution for complex geometries.
What kinds of parts are ideal for 5-axis machining?
It is ideal for aerospace components (impellers, blades), medical implants, complex molds/dies, automotive prototypes, and any part with intricate 3D surfaces or tight tolerances on multiple faces.
What level of precision can SINCERE achieve with 5-axis?
Utilizing advanced equipment and processes, we consistently hold tight tolerances (e.g., ±0.005mm) and achieve superior surface finishes on complex parts, backed by our ISO 9001:2015 quality system.
Expert Engineering Support
Contact our engineers for free technical consultation or project review.
