Precision Custom CNC Milling Services in China
SINCERE delivers precision CNC milling services with advanced 3/4/5-axis machining centers, ensuring tight tolerances, fast turnaround, and complex metal part manufacturing for both prototypes and production.
- No MOQ for all orders
- 70+ metal material options
- Production in 3-15 days
- ±0.005mm precision tolerance

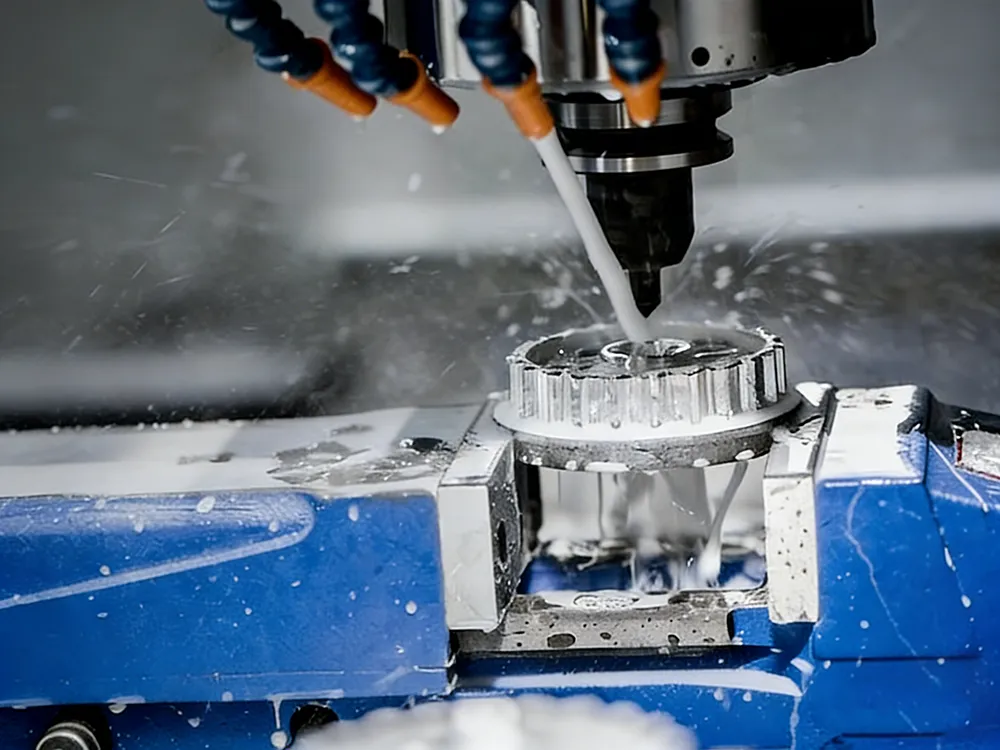

What is CNC Milling?
CNC Milling is a subtractive CNC machining process where computer-controlled, rotating cutting tools remove material from a solid block to create precise parts. Guided by digital CAD designs, multi-axis machines can produce complex shapes, slots, holes, and contours with high repeatability and tight tolerances. It is ideal for prototyping and producing functional components from metals and plastics. At SINCERE, we utilize advanced 3 to 5-axis CNC milling centers to transform your designs into high-quality reality.

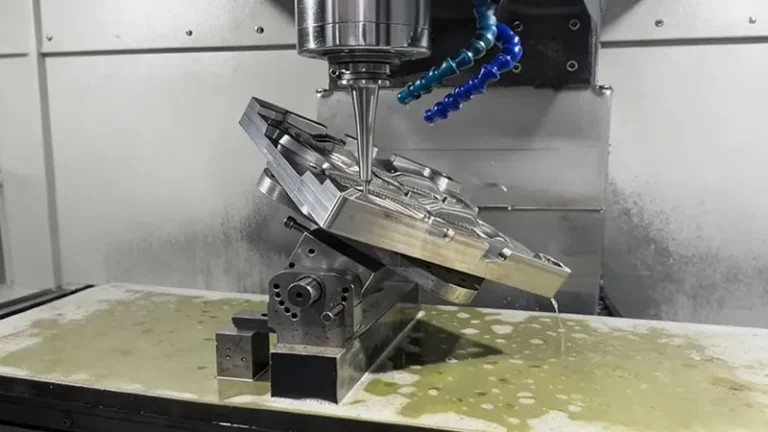

3-Axis CNC Milling Service
3-axis milling shapes parts on X, Y, Z planes. It excels at prismatic parts, offering cost-effective, reliable machining for prototypes and production. Ideal for pockets, holes, and flat surfaces.

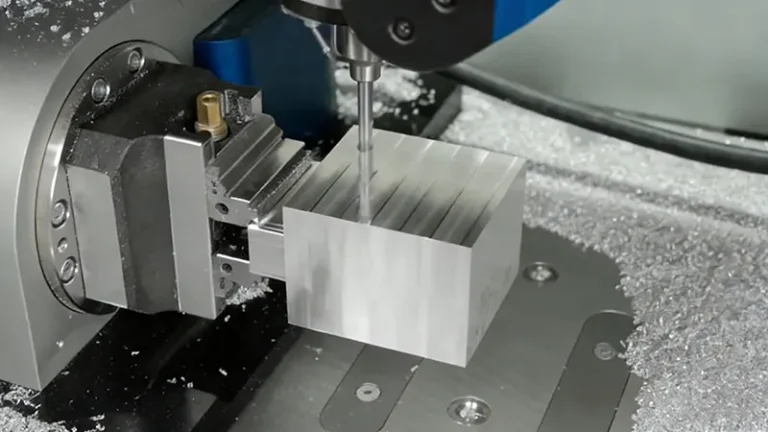

4-Axis CNC Milling Service
4-axis milling adds a rotary axis (A or B), enabling continuous machining around a cylinder. Perfect for cam profiles, helical features, and cylindrical parts, reducing setups and boosting efficiency.

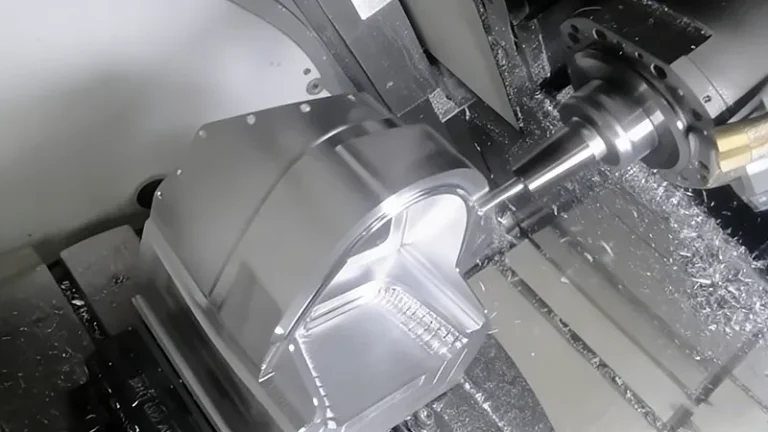

5-Axis CNC Milling Service
5-axis milling moves on five axes simultaneously. It machines complex contours, deep cavities, and undercuts in a single setup, delivering supreme accuracy for aerospace and medical parts.
Precision CNC Milling Projects

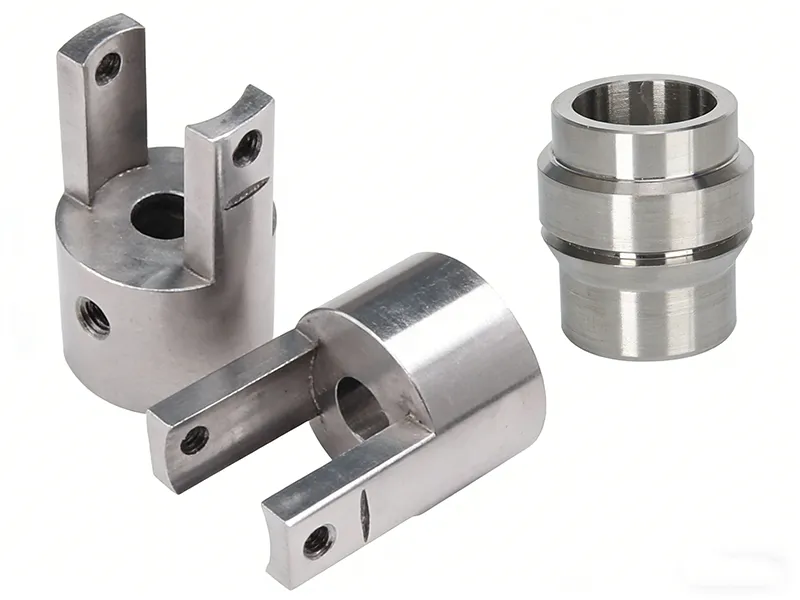

Stainless Steel CNC Milled Coupling
High-strength stainless steel flange for mounting or connection points. Machined to exact tolerances for a reliable, leak-proof seal.

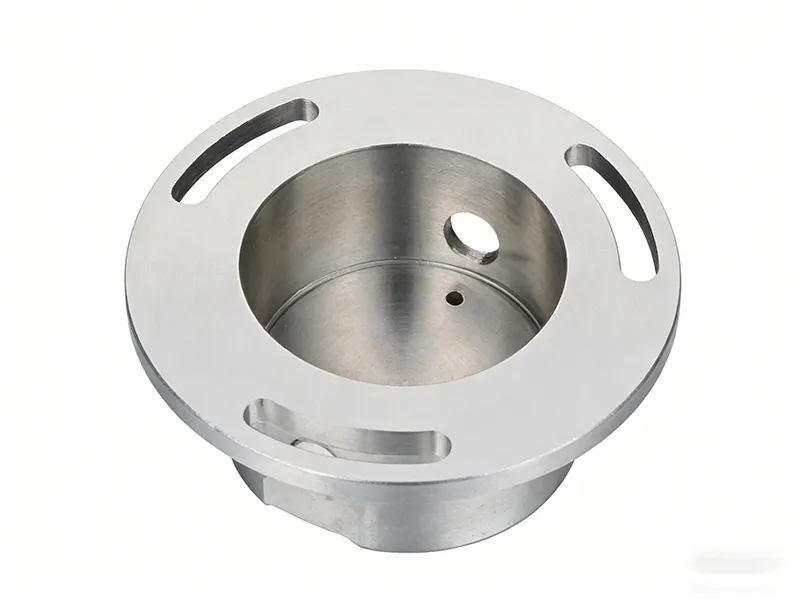

Stainless Steel CNC Milled Flange
Corrosion-resistant coupling crafted from stainless steel. Designed to connect two rotating shafts with high-precision milling and a secure fit.

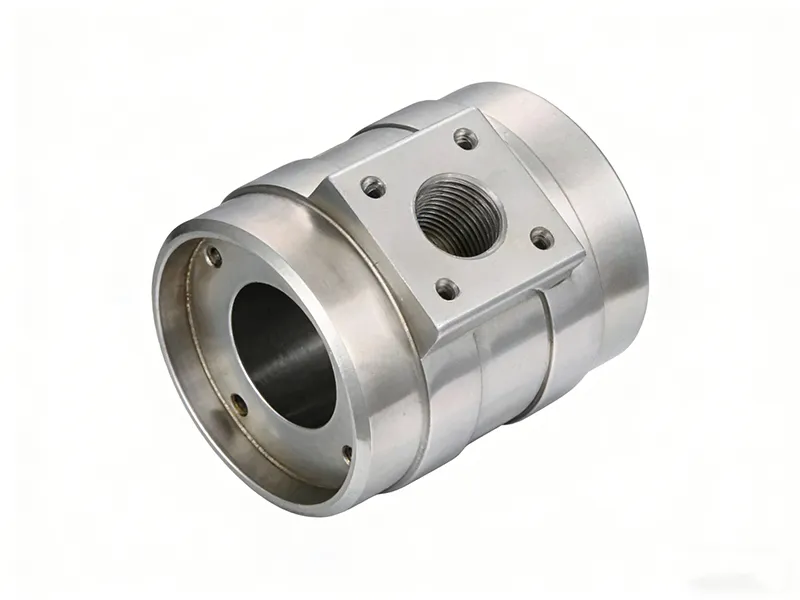

Aluminum CNC Milling Connector
Lightweight yet robust aluminum connector. Features complex geometries achieved through precision CNC milling for versatile joining applications.
Brass Threaded CNC Machined Sleeve
Precision-machined brass sleeve with durable internal threads. Used for joining components or as a protective spacer in assemblies.

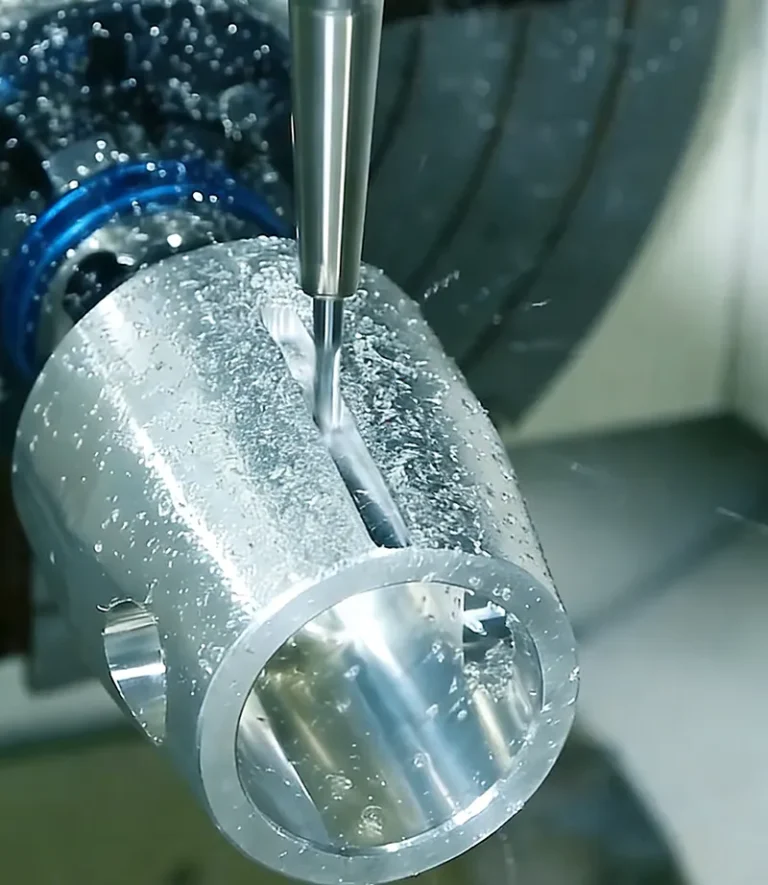

Advantages of CNC Milling Services
High Concentricity
Ensures perfect roundness and alignment for shafts, pins, and bearings, critical for smooth rotation.
Excellent Surface Finish
Delivers smooth, often mirror-like surfaces directly from the machine, reducing need for secondary finishing.
Fast Production Cycles
Ideal for high-volume runs of rotational parts, with automated feeding enabling continuous, efficient output.
Wide Material Range
Machines various metals including stainless steel, aluminum, brass, titanium, and alloy steels.
Rigorous Quality Control
Each part undergoes dimensional and surface inspection to guarantee it meets specified tolerances and standards.
CNC Milling Tolerances
At SINCERE, our precision machining is guided by industry best practices, with general tolerances adhering to ASME Y14.5 standards. We typically maintain CNC machining tolerances within ±0.004″ (±0.1mm) for standard components and can achieve ±0.0015″ (±0.038mm) for critical features, delivering reliable accuracy for diverse project needs.
When your design requires specific precision, we utilize your detailed CAD models and GD&T callouts as the definitive guide. Our engineering team focuses on fulfilling these exact requirements to guarantee part functionality, fit, and performance in the final assembly. We are committed to being your manufacturing partner for components that demand both quality and consistency.
| Type | Standard Tolerance | High Precision Tolerance |
| Linear Dimensions | ±0.10 mm (±0.004") | ±0.025 mm (±0.001") |
| Hole Diameter | ±0.05 mm (±0.002") | ±0.012 mm (±0.0005") |
| Position / True Position | 0.10 mm (0.004") | 0.05 mm (0.002") |
| Flatness | 0.10 mm / 100 mm | 0.05 mm / 100 mm |
| Surface Roughness (Ra) | 3.2 μm (125 μin) | 1.6 μm (63 μin) |

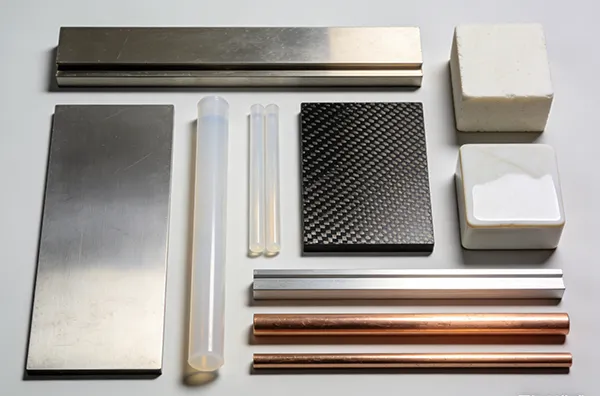

Most Common CNC Milling Materials
Experience ±0.005mm Precision, On-Demand CNC Machining Service & Reliable Support.

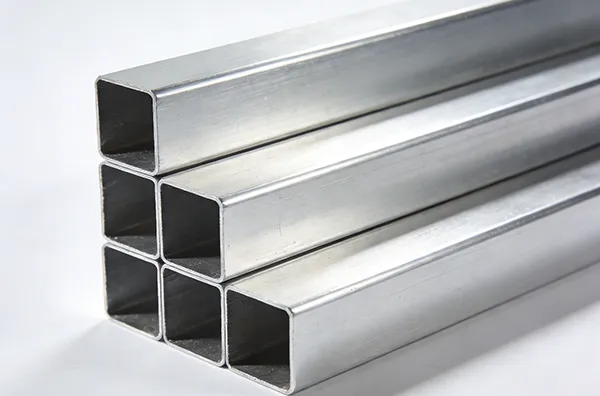

Aluminum
Aluminum: Lightweight, strong, corrosion-resistant, and fully recyclable. An ideal, cost-effective material for high-performance parts across industries.
Alloys: 6061, 7075, 2024, 5052, 5083, 6060, 6082, 2017
Finishing: Anodizing (Type II/III, +PTFE), Alodine, ENP, Powder Coating, Plating, Blasting, Polishing, Passivation.

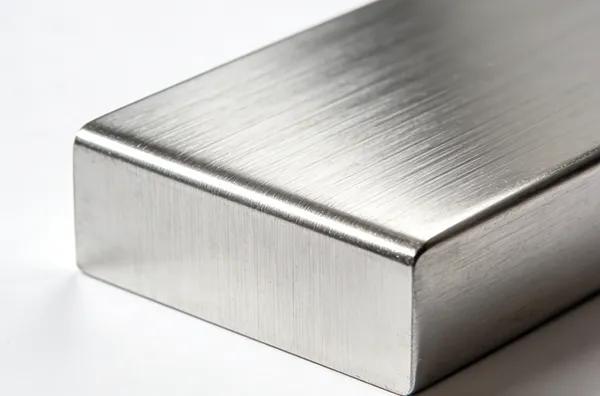

Stainless Steel
Stainless Steel: Highly corrosion-resistant, durable, and strong with excellent hygiene properties. Ideal for medical, marine, and food-grade applications requiring long-term reliability.
Grades: 304/304L, 316/316L, 303, 17-4 PH, 416, 440C, 904L
Finishing: Passivation, Electropolishing, Bead/Sand Blasting, Brushing, Powder Coating, Nickel/Chrome Plating, PVD Coating, Mirror Polishing.
Other CNC Milling Materials
Beyond common metals, we machine specialized alloys including titanium, brass, magnesium, and tool steels to meet unique strength, weight, or environmental requirements.
CNC Milling Applications Across Industries
Precision CNC milling producing complex, high-tolerance components for critical applications, from prototypes to high-volume production.
Automobile
Aerospace
Medical
Electronice
Robotic
Energy
CNC Milling Surface Finishing Options
Experience ±0.005mm Precision, On-Demand CNC Machining Service & Reliable Support.
Anodizing (Type II)
Hard Anodizing (Type III)
Forms an extra-thick, extremely hard aluminum oxide layer for superior wear and abrasion resistance.
Chemical Film (Alodine / Chromate Conversion)
Applies a thin, conductive chromate coating for corrosion resistance and enhanced paint adhesion, commonly used on aluminum.
Passivation
Removes free iron contaminants from stainless steel surfaces to maximize corrosion resistance and prevent rust.
Electropolishing
Electrochemically removes a thin surface layer from stainless steel, resulting in a smooth, mirror-like, and micro-deburred finish.
Powder Coating
Applies a dry polymer powder electrostatically, then cures it to form a thick, durable, and decorative protective layer in many colors.
Electroless Nickel Plating (ENP)
Deposits a uniform, hard nickel-phosphorus alloy coating through chemical reaction, offering excellent wear and corrosion resistance.
Nickel / Chrome Electroplating
Electrolytically deposits layers of nickel and/or chromium for a decorative, shiny metallic appearance and added surface protection.

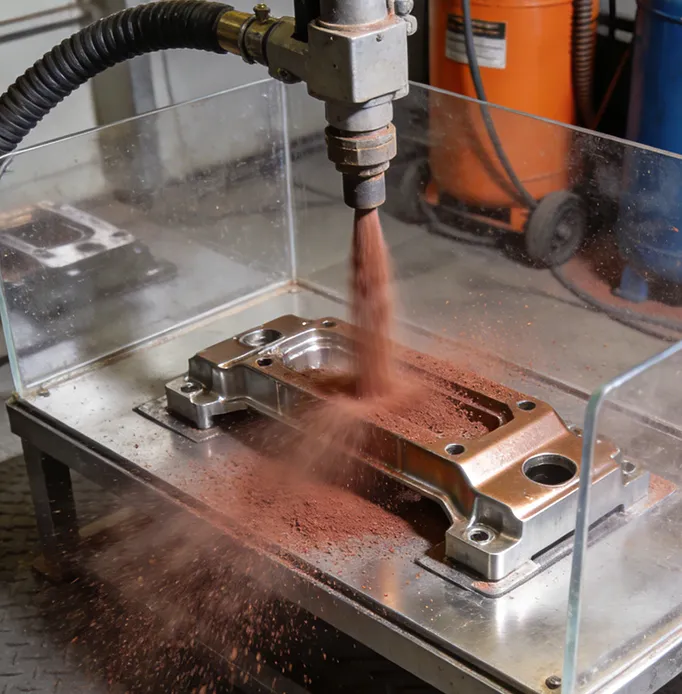

Media Blasting (Bead/Sand)
Projects fine abrasive media to create a uniform matte or satin texture, removing tool marks and preparing surfaces for coating.
Polishing & Buffing
Mechanical processes using abrasives to achieve a smooth, reflective surface, ranging from a satin sheen to a high-gloss mirror finish.
Laser Marking
Uses a laser beam to permanently etch serial numbers, logos, or data matrix codes onto the part surface without contact or pressure.
Get Precision Parts Faster with Our Streamlined 4-Step Workflow.
24/7 Project Support. Get Your Parts Fast, Anywhere.
01.
Upload CAD Files
Easily submit your 3D CAD files and specifications to initiate your project. We support all major file formats for a seamless start.
02.
DFM Review Quotation
Our engineers perform a comprehensive DFM review and provide a transparent, detailed quote with optimized suggestions for cost and manufacturability.
04.
Global Delivery
We carefully package and coordinate fast, reliable global shipping to your specified location, with ongoing support for your needs.
Our partners
Get a competitive quote for high-value CNC machining without compromising on precision.
FAQ About CNC Milling Services
Get a competitive quote for high-value CNC machining without compromising on precision.
1. What sets your CNC machining capabilities apart?
We operate 100+ advanced CNC mills and lathes, including multi-axis (3/4/5-axis) and Swiss-type machines, allowing us to handle complex geometries and high-precision parts others cannot. Our in-house engineering team provides free DFM analysis to optimize your design for cost and manufacturability.
2. How do you ensure part quality and consistency?
Every part is manufactured under our ISO 9001:2015 certified quality system. We perform in-process and final inspections using precision tools like CMMs, ensuring all dimensions meet your specified tolerances. Full inspection reports are available upon request.
3. What materials can you machine?
We specialize in metals, including various grades of aluminum, stainless steel, alloy steel, titanium, and brass. Our expertise covers over 50+ material grades, and we provide guidance on selecting the optimal one for your application’s strength, weight, and cost requirements.
4. What is your typical lead time for prototypes and production?
For prototypes, we offer fast-turn services, often within 3-7 days. Production timelines depend on volume and complexity, but our streamlined workflow and ample machine capacity ensure reliable, on-time delivery. We provide a firm schedule with every quote.
5. Do you offer design support to reduce manufacturing costs?
Absolutely. A key advantage of partnering with us is our complimentary Design for Manufacturability (DFM) feedback. We identify features that may increase cost or risk—such as overly tight tolerances or hard-to-machine geometries—and suggest practical, cost-saving alternatives.
6. Can you handle both small prototypes and large production runs?
Yes, we are built for scalability. From a single prototype to high-volume production of 100,000+ parts, our flexible capacity and automated processes ensure the same high quality and precision at any scale, providing a seamless bridge from development to full-scale manufacturing.
